2020 Canon Alphenix Angiography System

Overview

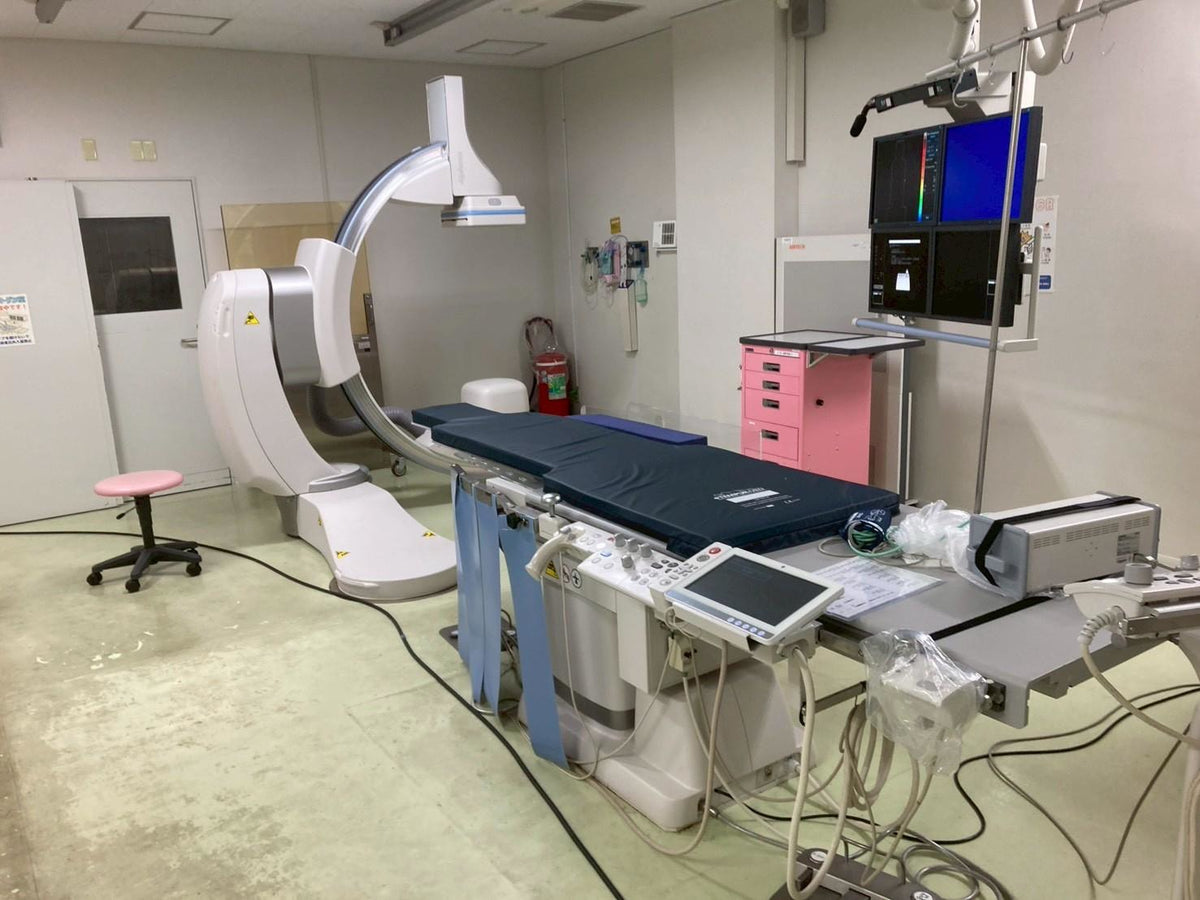

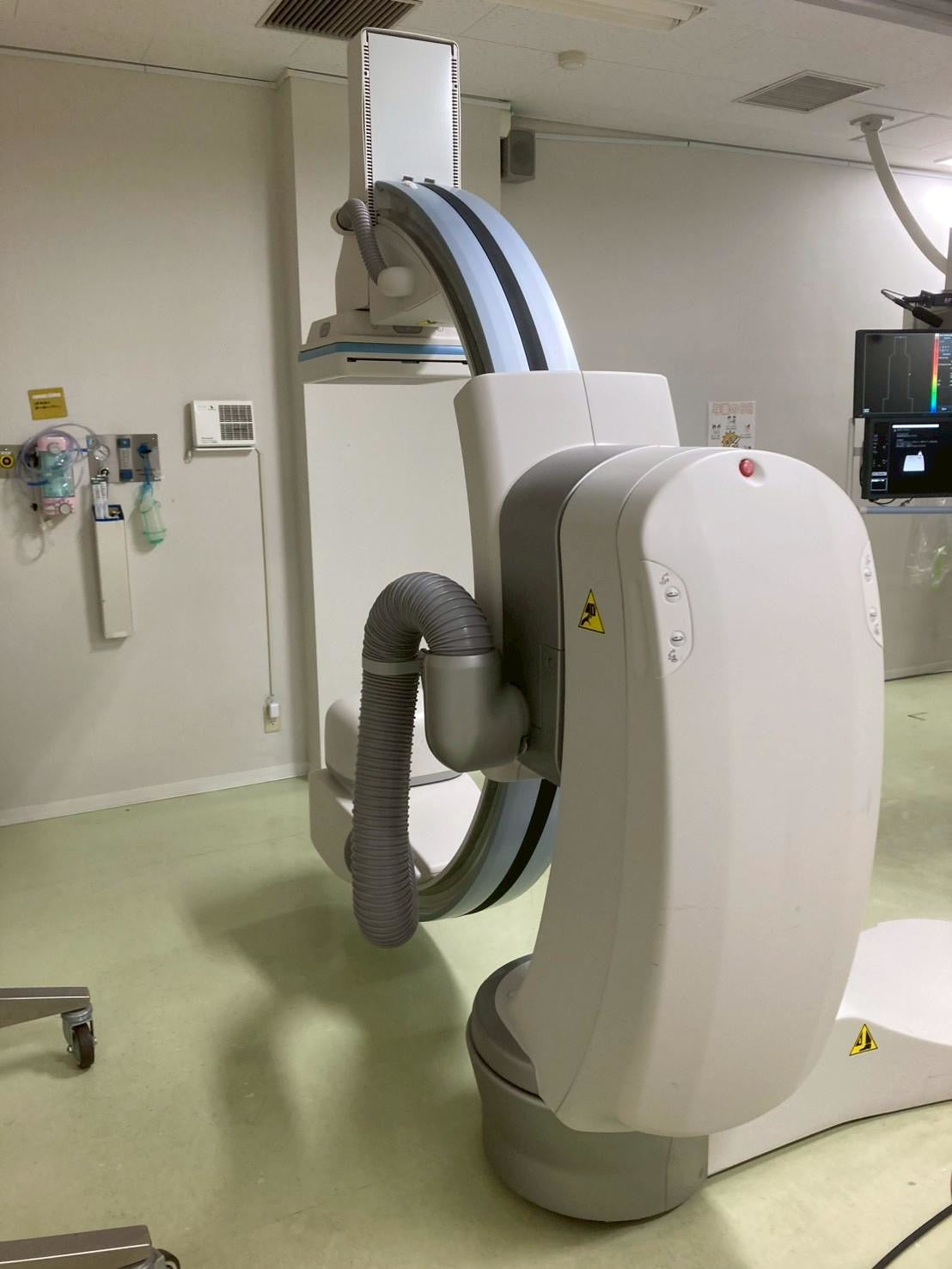

Canon Alphenix angiography system with a ceiling-mounted curved C-arm and patient table configuration.

Configured with a Canon TFP-1200C flat-panel detector and a four-monitor procedure-room display array.

System specifications

• Unit model: INFX-8000V/HR.
• System type: Cath Lab / Angio.

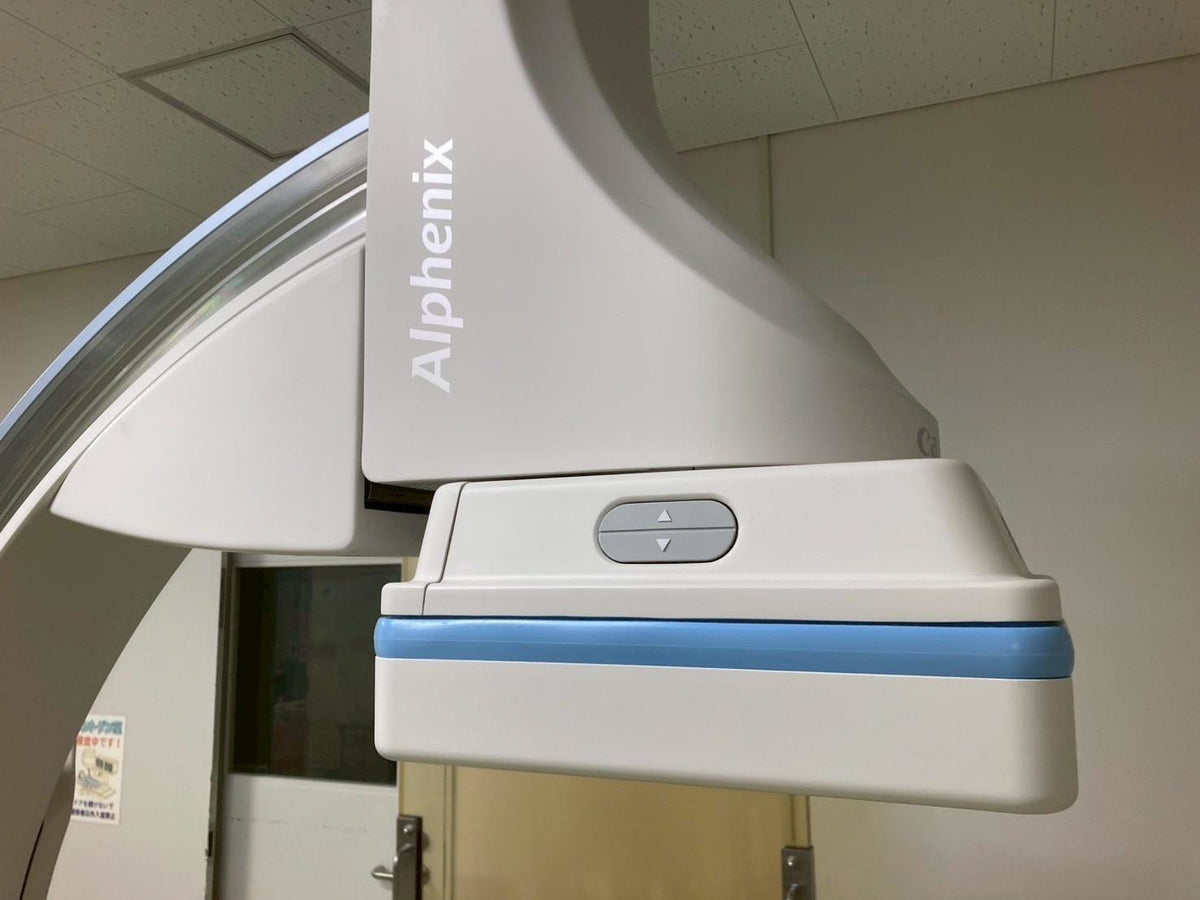

• Detector: Canon TFP-1200C flat-panel detector.

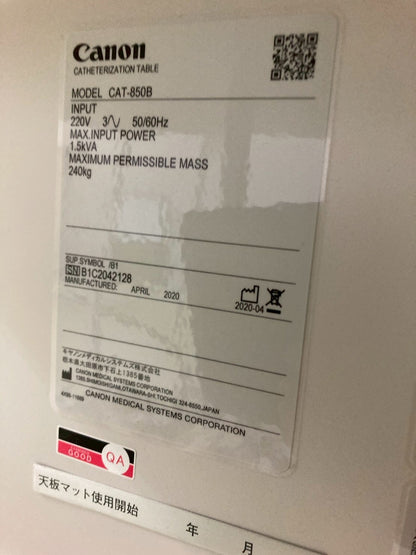

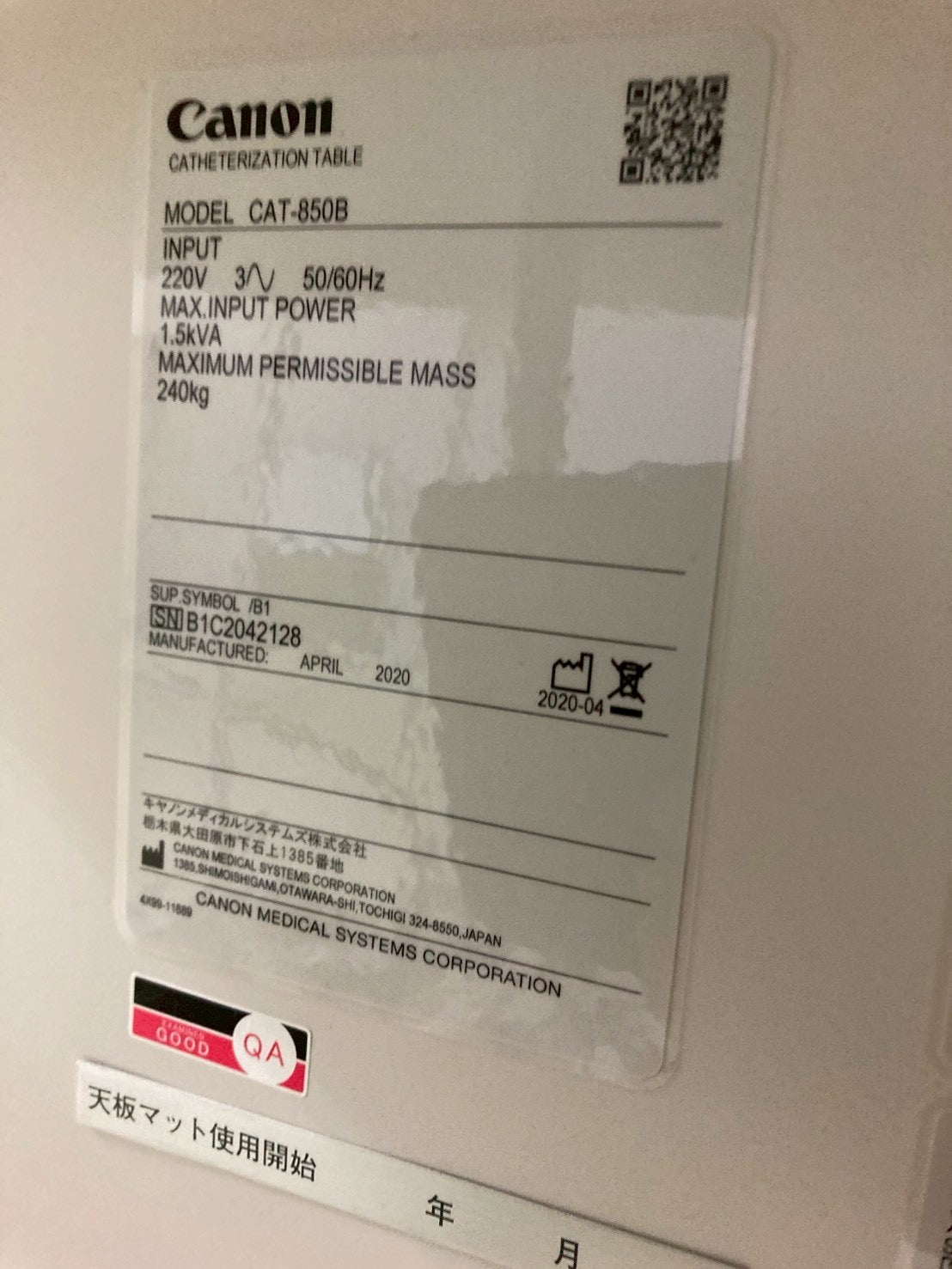

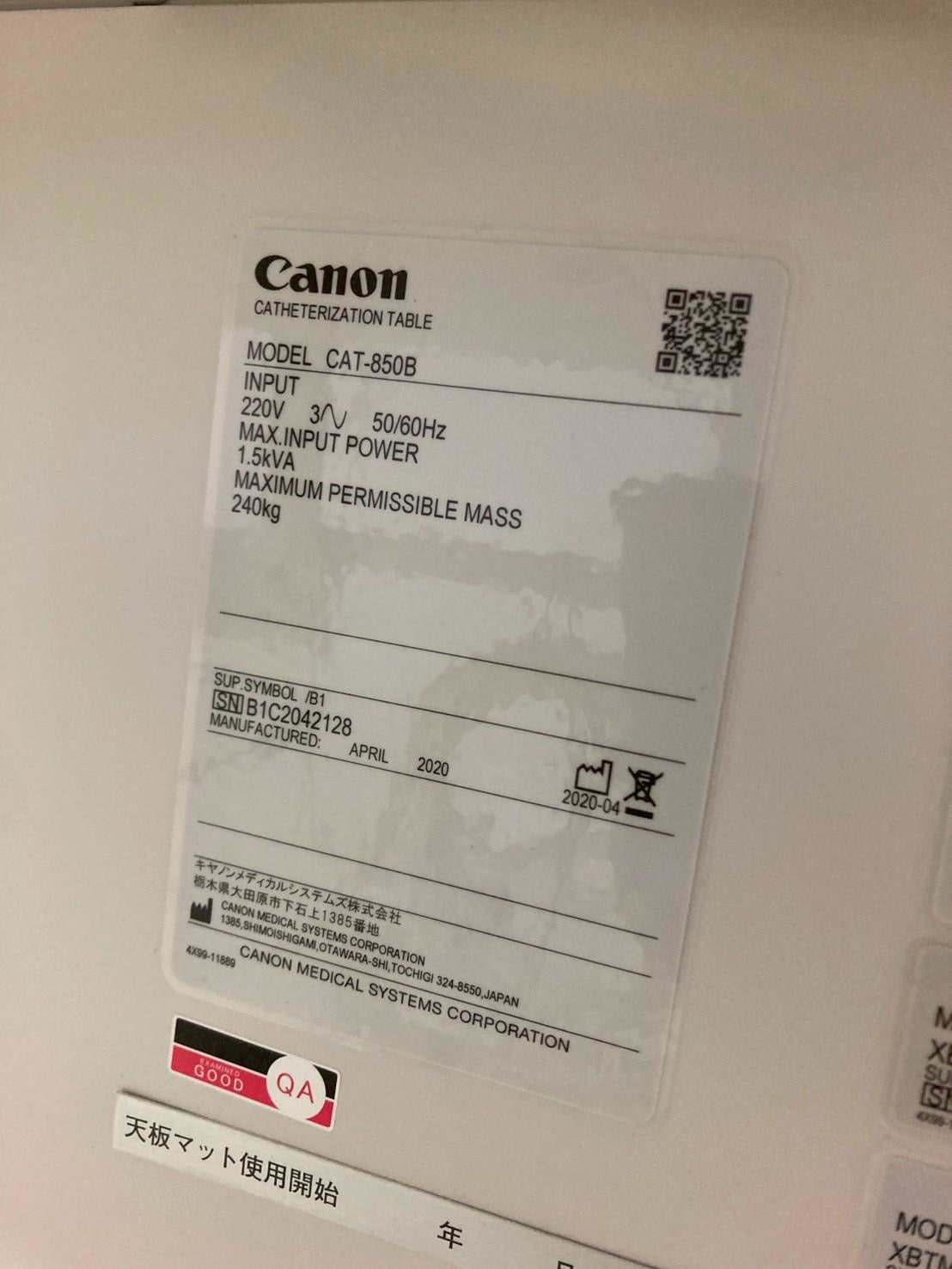

• Patient table: Canon CAT-850B with 240 kg maximum permissible patient mass.

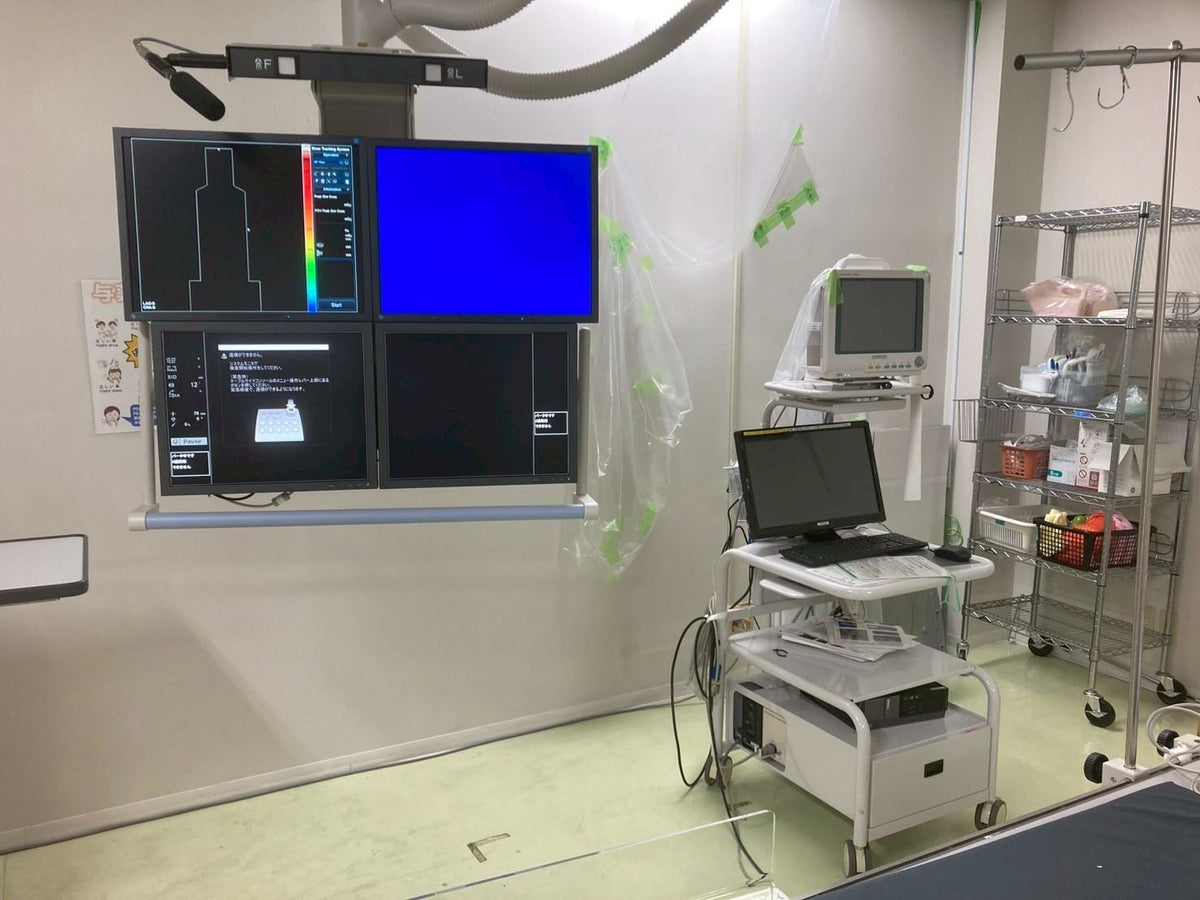

• Procedure-room monitors: four-panel, two-by-two array.

Tube details

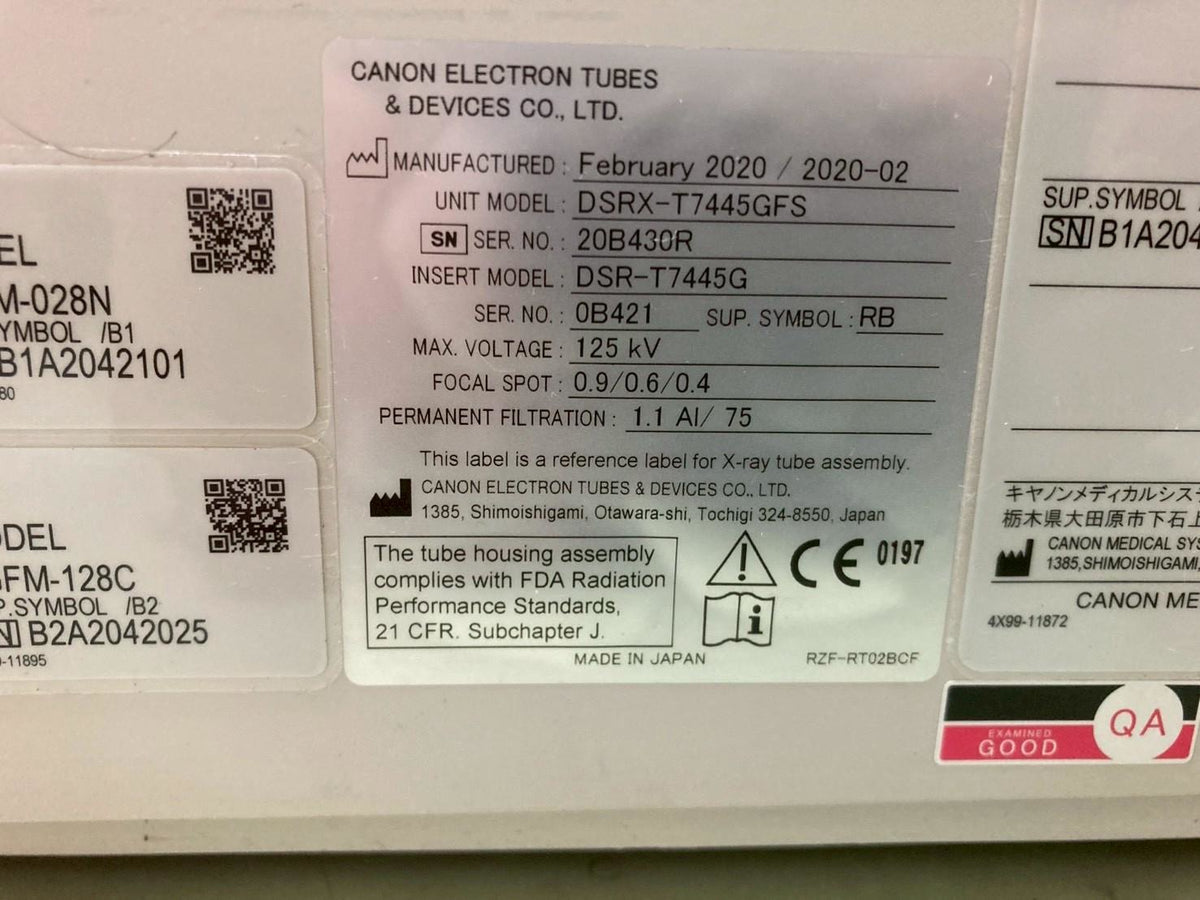

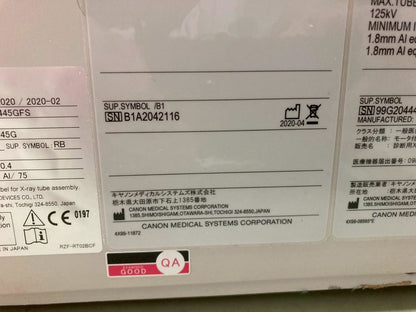

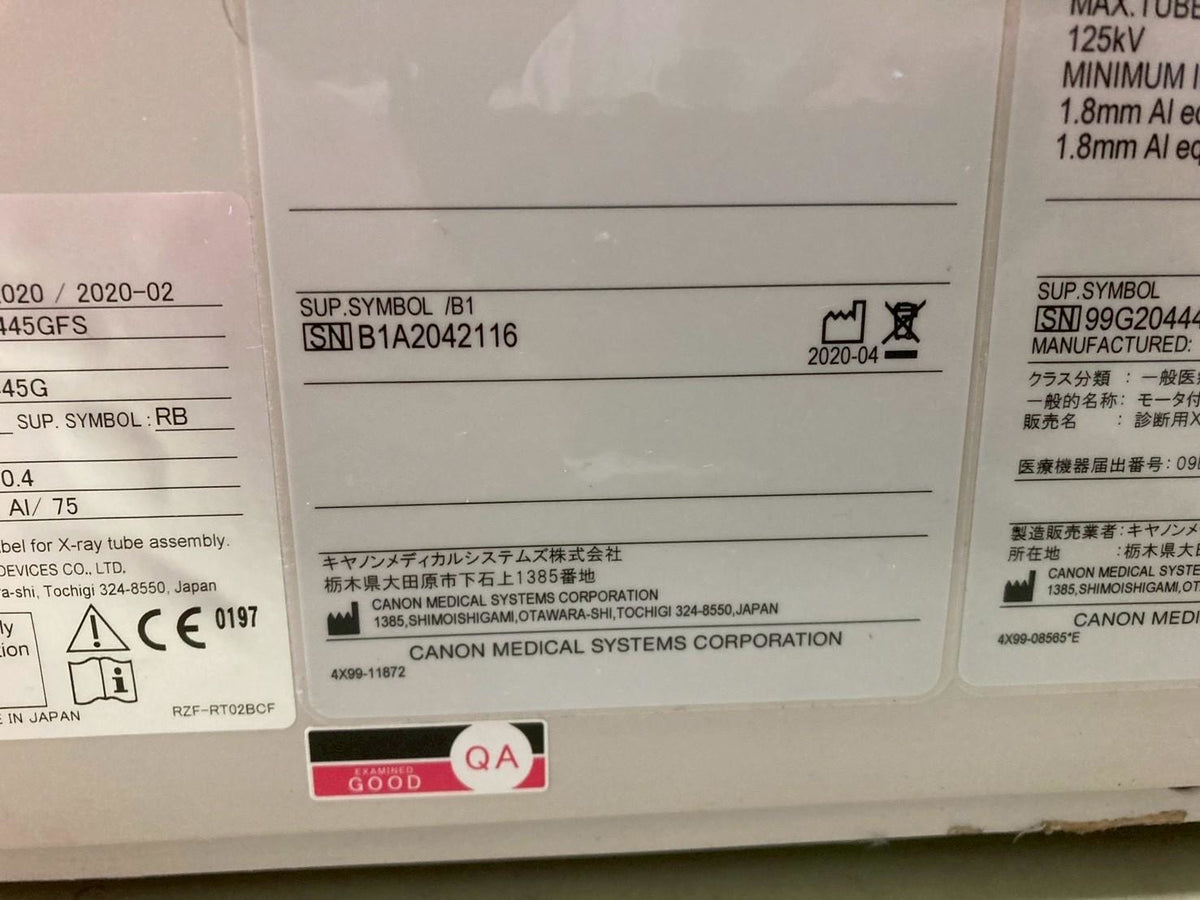

• Tube housing assembly: Canon Electron Tubes & Devices DSRX-T7445GFS, manufactured February 2020.
• Tube insert: DSR-T7445G.
• Maximum tube voltage: 125 kV; focal spots: 0.9/0.6/0.4.

Software and options

• Clinical interface: Alphenix Neuro.

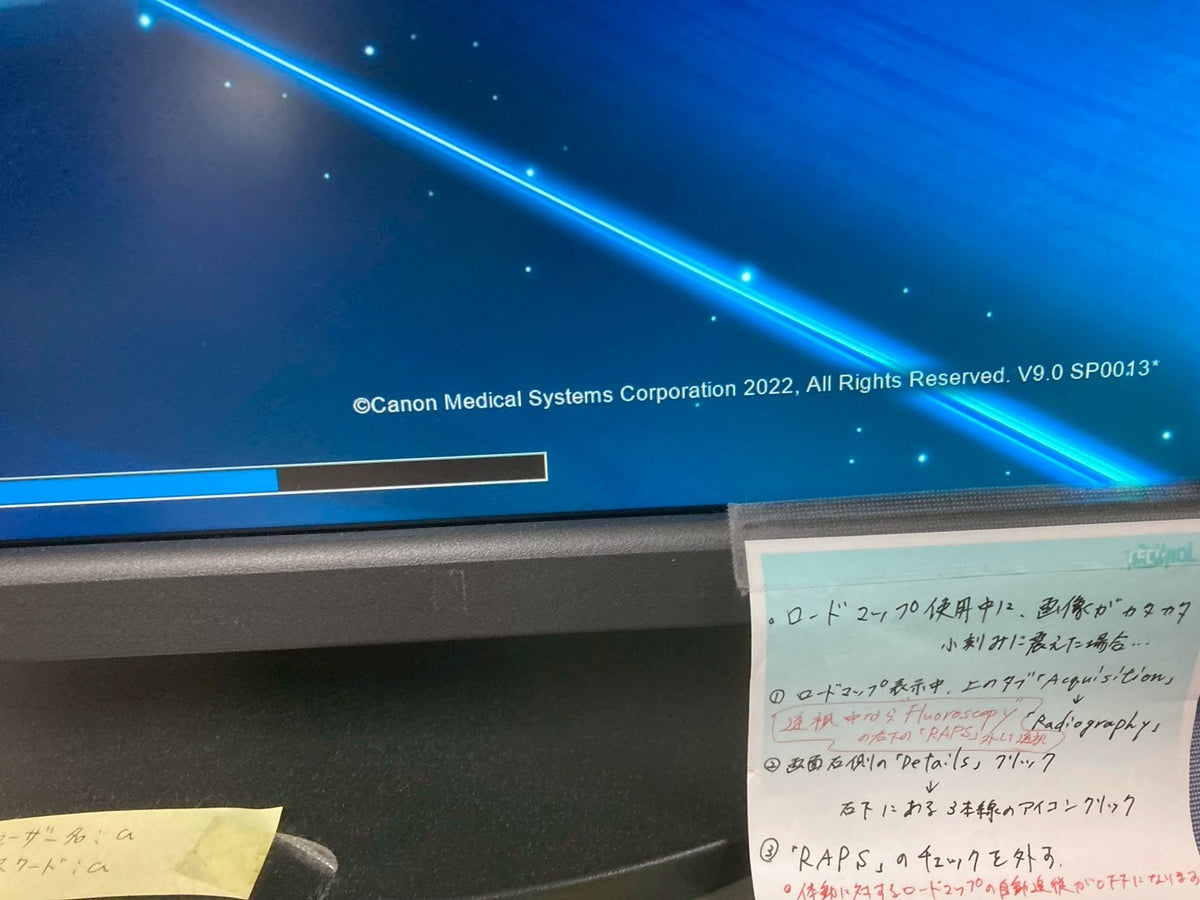

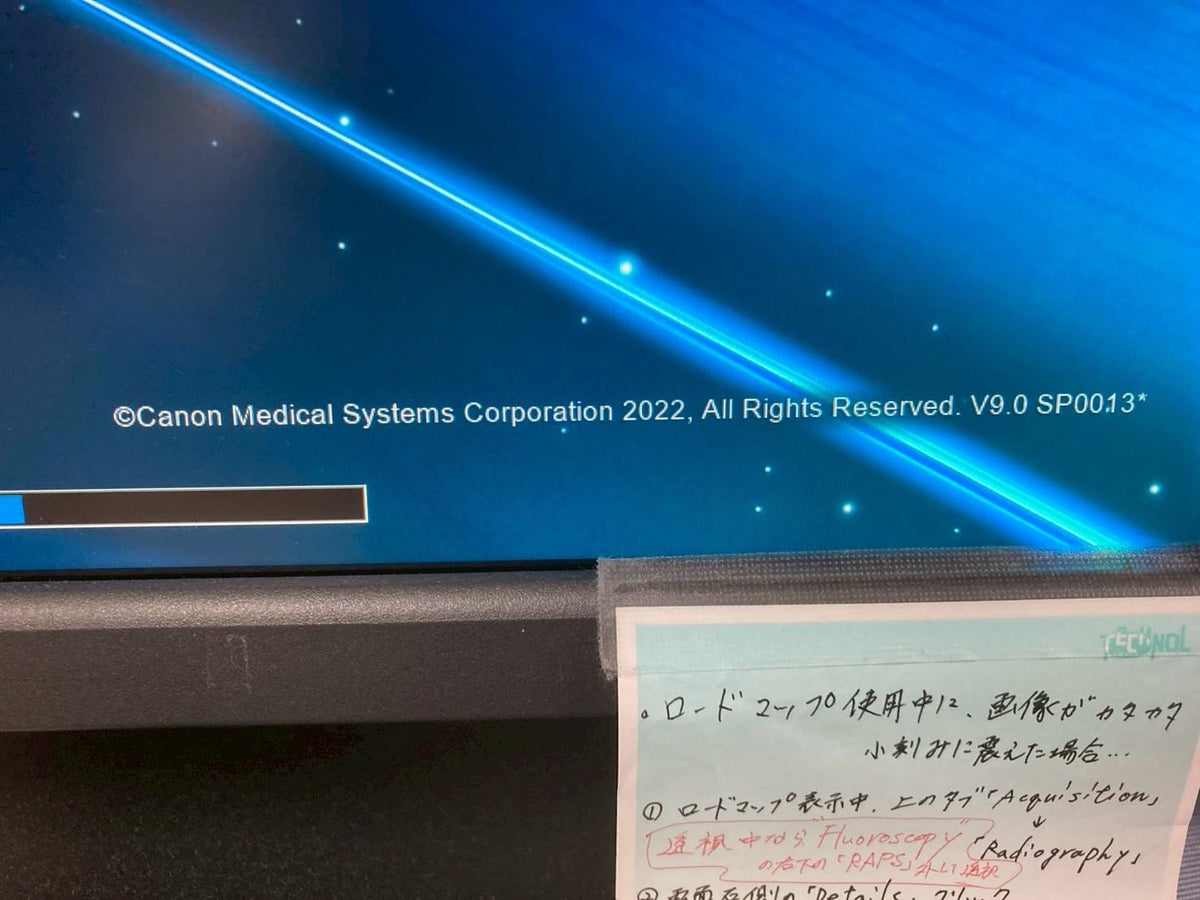

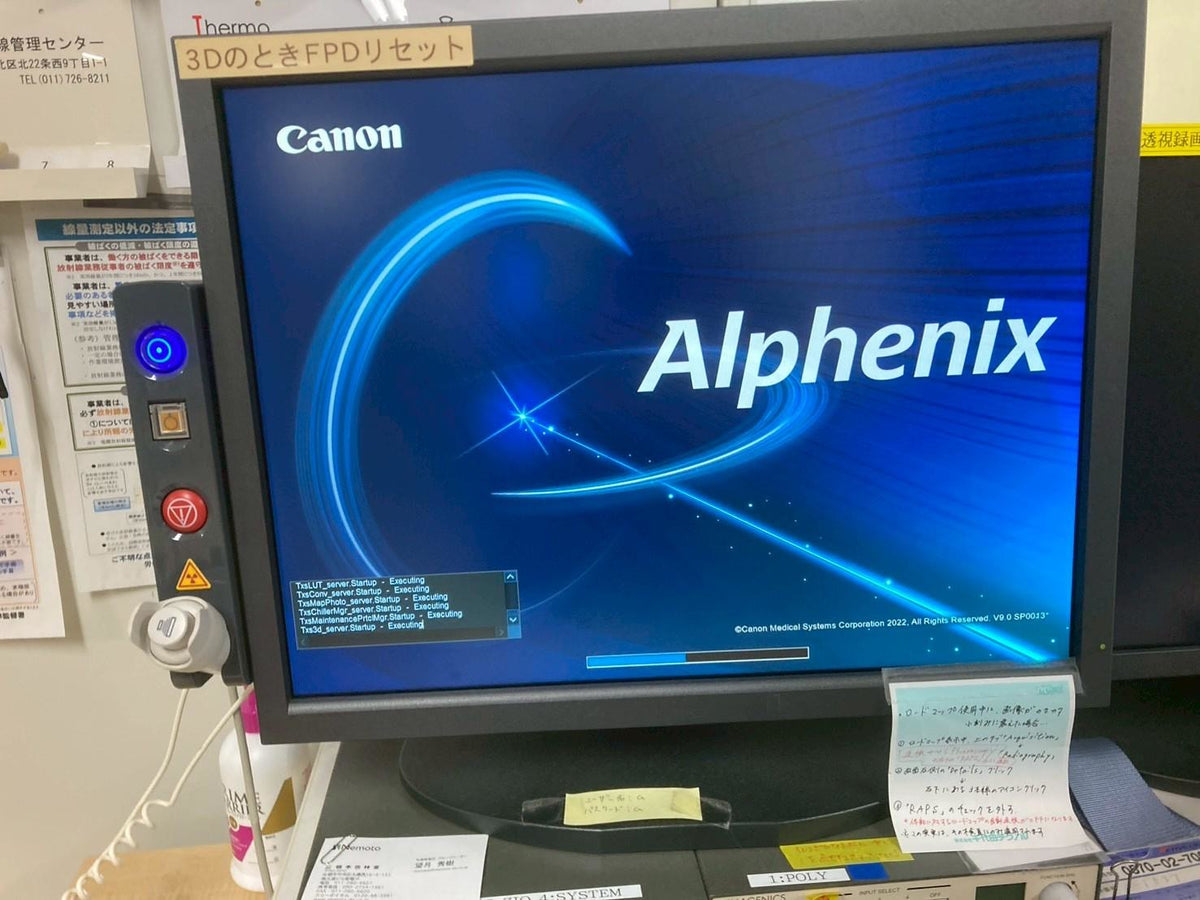

• Software version: Canon Alphenix V9.0 SP0013.
